State of the art machinery

Performance ranges

deformation of pipes

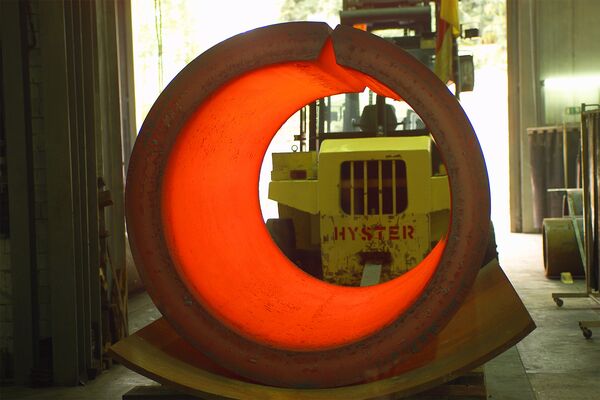

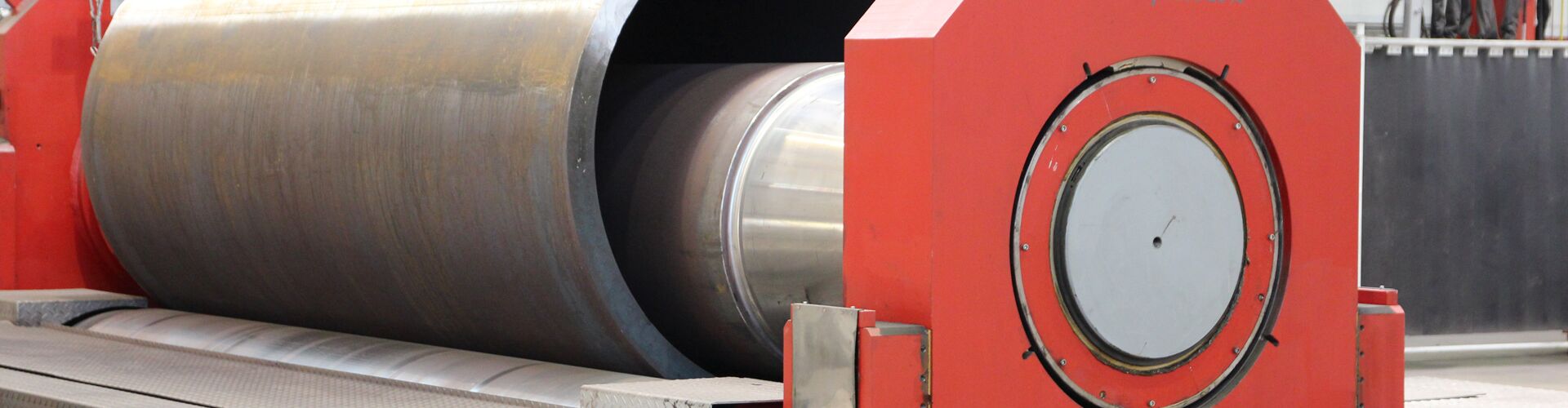

Cold and hot forming of steel pipes

  • up to 4,200 mm clear Ø
    up to 4,000 mm length
    depending on wall thickness without circumferential seam
  • Longer pipe lengths with circumferential weld possible
    Inner tube diameter:
    300mm to 1,500mm
    up 1.500mm    		 Wall thickness:
    15 - 150mm
    max. 200mm

High quality materials

  • General structural steel according to DIN EN 10025-2
    e.g.: S235JR+N, S355J2+N
  • Fine-grained structural steel according to DIN EN 10028-3
    e.g.: S355NL, S460NL, P355NL2/NH, P460NL2/NH
  • Water-quenched and tempered fine-grained structural steel
    according to DIN EN 10025-6 e.g.: S690QL/QL1
  • Heat-resistant steel according to DIN EN 10028-2
    e.g.: P265GH, 16Mo3, 10CrMo9-10, 13CrMo4-5
  • Thermomechanically rolled fine-grained structural steel
    according to DIN EN 10025-4 e.g.: S350ML, S460G2+M
  • Stainless steel according to DIN EN 10028-7, DIN EN 10088
    e.g.: 1.4301, 1.4541, 1.4571, 1.4462
materials

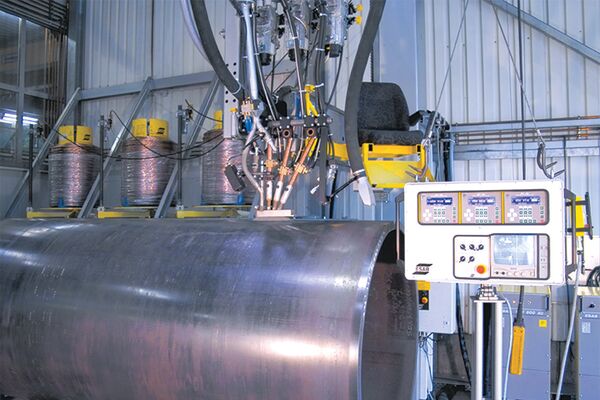

Welding process

  • Submerged arc welding, inside and outside
  • MIG / MAG

Wage annealing

  • Annealing in TÜV-approved furnace with diagram and annealing certificate

Modern production according to your specifications

Thick-walled pipes (longitudinally welded)

Container jackets

Rope drums

Bandages / Rolling coats

Motor housing from 300 mm li Ø

Hydraulic cylinder

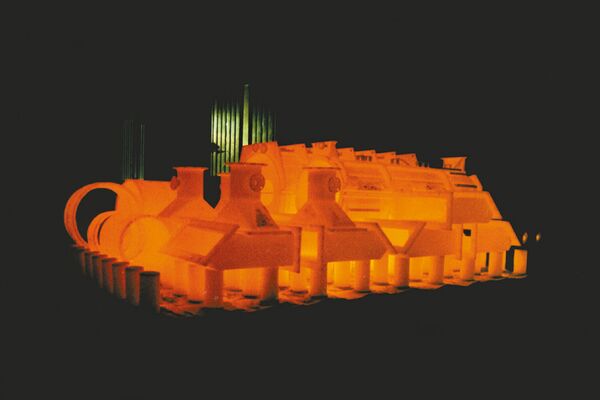

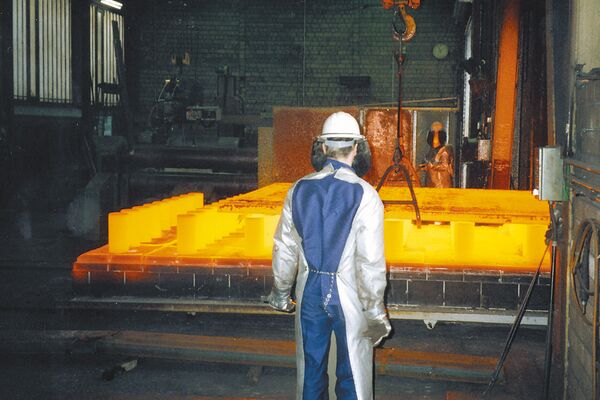

Modern annealing technology for your benefit

Our modern annealing furnace with automatic temperature programme control
and chart recorder guarantees highest quality

Usable area of the oven (in mm): 6600 long x 3800 wide x 2000 high

Loading weight: 20 tonnes
